Deskripsi

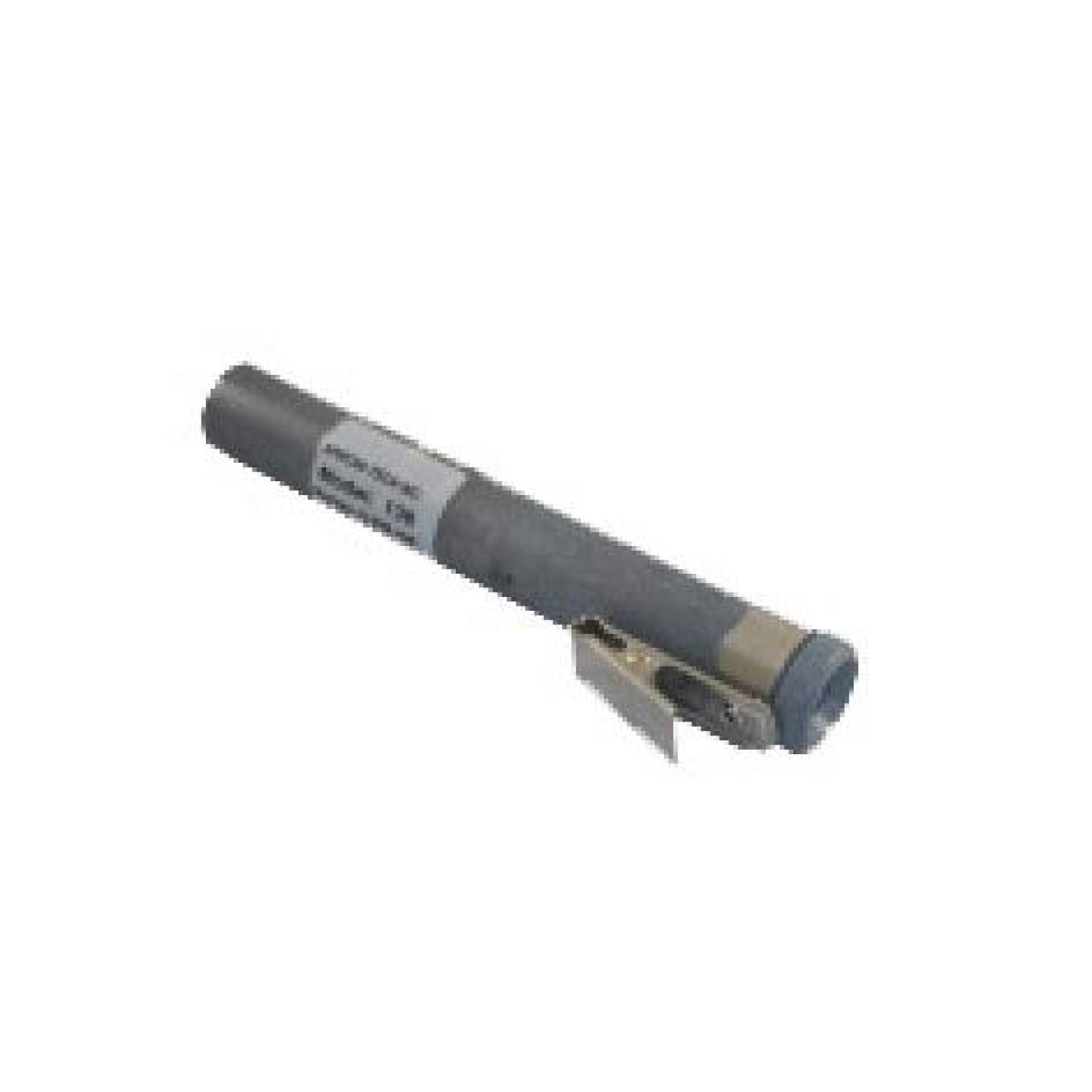

The Direct-Reading Dosimeters are rugged, precision instruments. They are designed to measure and directly read, at any time accumulated dose of gamma and x-ray radiation exposure. The Direct-Reading Dosimeter is designed to satisfy military specifications for the IM-Series RADIAC METER and ANSI N13.5 and N322 requirements. The sturdy metal clip attaches the dosimeter to a pocket or any object to monitor total radiation exposure. They are hermetically-sealed and immersion proof. The Direct-Reading Dosimeter is a pocket-size, carbon-fiber electroscope with an ion chamber for detecting and indication of integrated exposure to Gamma and X-Ray radiation. It has a thin wall which permits the penetration and detection of radiation. This model comes with a hardened sapphire window that won't scratch even in the toughest of conditions. Specifications: Radiation Detected: Gamma and X-Ray from 16 keV to 6 MeV Range: 0-200mR Detector: Fiber-Electrometer mounted in an Electrically Conductive Plastic Ion Chamber Detector Housing: Very low permeability plastics - Hermetically-Sealed Accuracy: +/ 10% of true exposure Rate Response: Dose rate independent for Gamma and X-Ray Electrical Leakage: Less than 1.0% of full scale for 24 hours at 50 C Temperature Range: -20 degrees C to +50 degrees C Relative Humidity: Up to 90% Dimensions: 4.5 (12.4 cm) Length X .6 Mohon ditambahkan dicatatan untuk tipe pemesanan Arrow Tech Analog USA : 1. Direct-Reading Dosimeter - W138, 0-200mR 2. Direct-Reading Dosimeter - W138-S, 0-2 mSv 3. Direct-Reading Dosimeter - W500, 0-500 mR 4. Direct-Reading Dosimeter - W500-S, 0-5 mSv 5. Direct-Reading Dosimeter - W720, 0-2R 6. Direct-Reading Dosimeter - W725, 0-5R 7. Direct-Reading Dosimeter - W725-S, 0-50 mSv 8. Direct-Reading Dosimeter - W730, 0-20R 9. Direct-Reading Dosimeter - W735, 0-50R 10. Direct-Reading Dosimeter - 740, 0-100R 11. Direct-Reading Dosimeter - 742, 0-200R 12. Direct-Reading Dosimeter - 746, 0-600R Spesifikasinya bisa dicek di https://radiologi.co.id/pendose-analog-w138-specification
