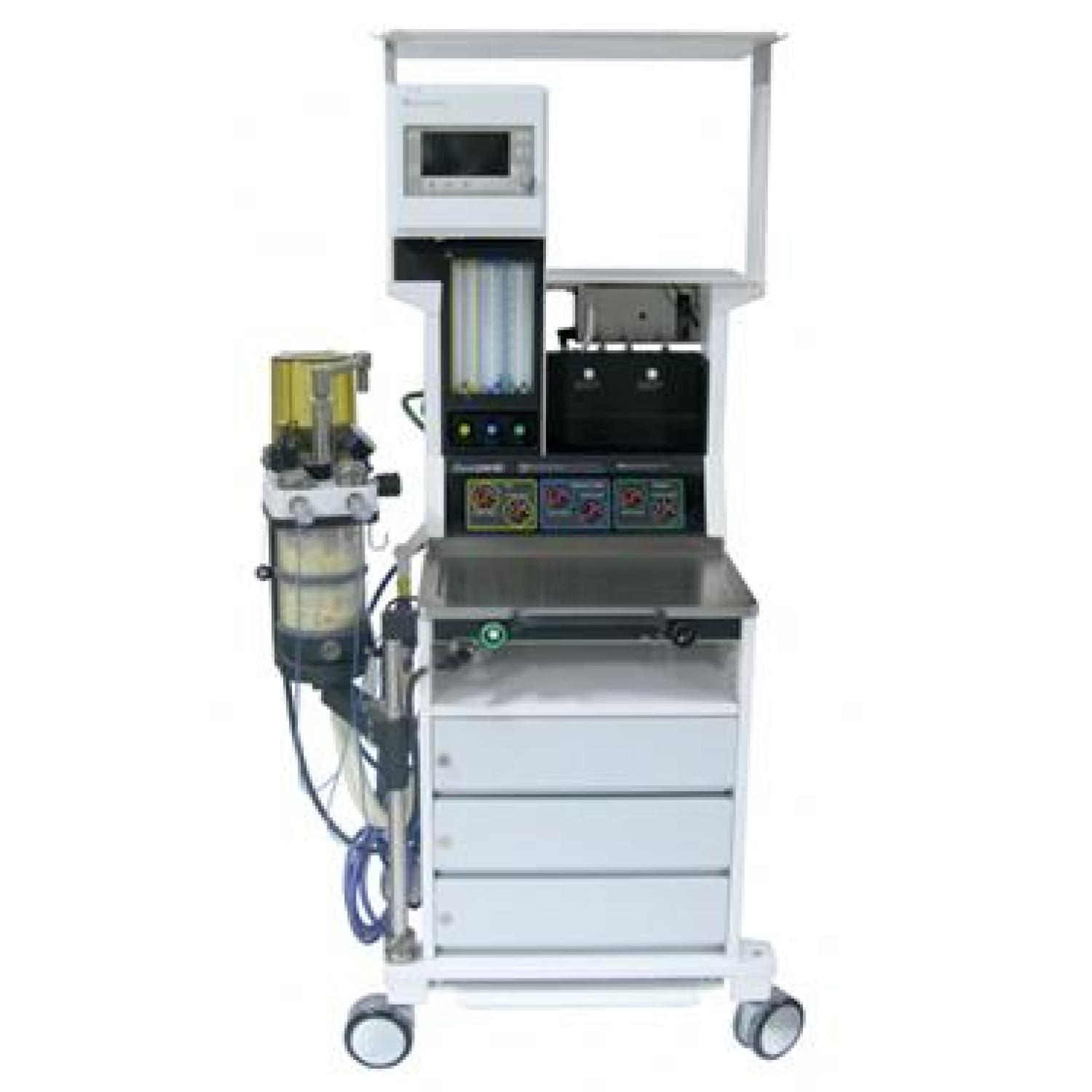

Datex-Ohmeda Excel 210 Anesthesia Details

The Excel 210 is an all pneumatic alternative for close quarters. This unit has O2, N2O, and medical air standard. Also standard are Hypoxic Guard and a GMS absorber. Drawer pack configurations may vary from picture.

Features
Accommodates 3 gases and 2 vaporizers
Powerful ventilation and monitoring capabilities for secondary anesthetizing locations.
Compact Frame; Fits Space-Constrained Areas.
Integrated Oxygen, Volume, Airway Pressure Monitoring.
Enclosed, Non-interchangeable Pneumatic Circuitry.
Differentiated Pipeline, Cylinder Gauges.
Master On / Off Switch; Activates Electronics and Pneumatics.
Link-25 Hypoxic Mixture Guard System.
Pin-Indexed, Gas-Specific Dual O2 and N2O Flowmeters.

Selectatec® Vaporizer Manifold for two Tech 5 Vaporizers.
Guarded O2 Flush Button.
Oxygen Power Outlet.
Fixed shelving with added Monitoring space.
Two-drawer Storage Cabinet.
Single-action Brake / Footrest.
Full-height Dovetail Accessory Mounting System.
Large, Easy-running Casters.

Options
7800 Electronic Ventilator with Tek 5 Vaporizers
7000 Ventilator with Tek 4 Vaporizers
New Sigma Delta Vaporizer

Specifications:

Physical Weight & Dimensions
Height: 66 inches (168 cm)
Width: 22 inches (55.87 cm)
Weight: 300 lbs (136 kg)
Width of Frame: 20 inches (50.7 cm)

Middle Shelf
Size: 18.6 × 12.5 inches (47.2 × 31.7 cm)
Max Shelf Load: 24 lbs (11 kg)
Usable Height: 6 inches (15.2 cm)

Top Shelf
Size: 23.5 × 14.2 inches (59.6 × 36 cm)
Max Shelf Load: 48 lbs (22 kg)

Table Top
Size: 21.7 × 11.5 inches (55.2 × 29.2 cm)
Height from Floor: 33.5 inches (85 cm)

Other
Absorber Arm Length: 14 inches (35.5 cm)
Vertical Adjustment from Floor: 10 in to 26 in (25.4 cm to 66 cm)
Horizontal Adjustment: 6.5 inch min; 11 inch max (16.5 cm min; 27.9 cm max)
Drawer Cabinet: Contains two 10.5 × 15 × 4 inch drawers
Casters: Diameter 5 inches (12.7 cm)
Brakes: Brake bar lock on front casters; operated by footbar.

The 210 SE differs from the 210 in that it is a later model and has more Ventilator Options. O2, N2O, and Medical Air are Standard on the Excel 210 SE
