Deskripsi

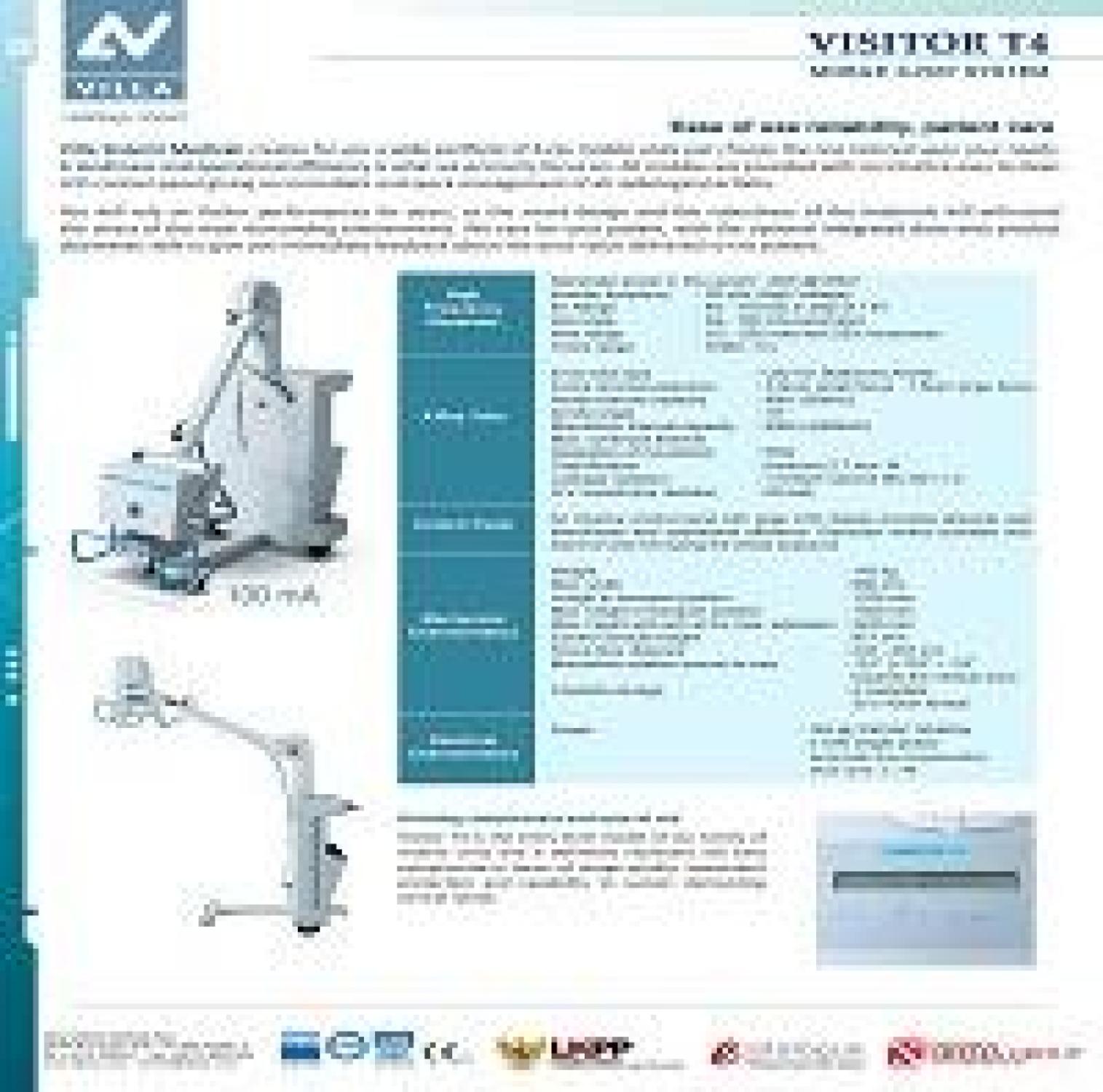

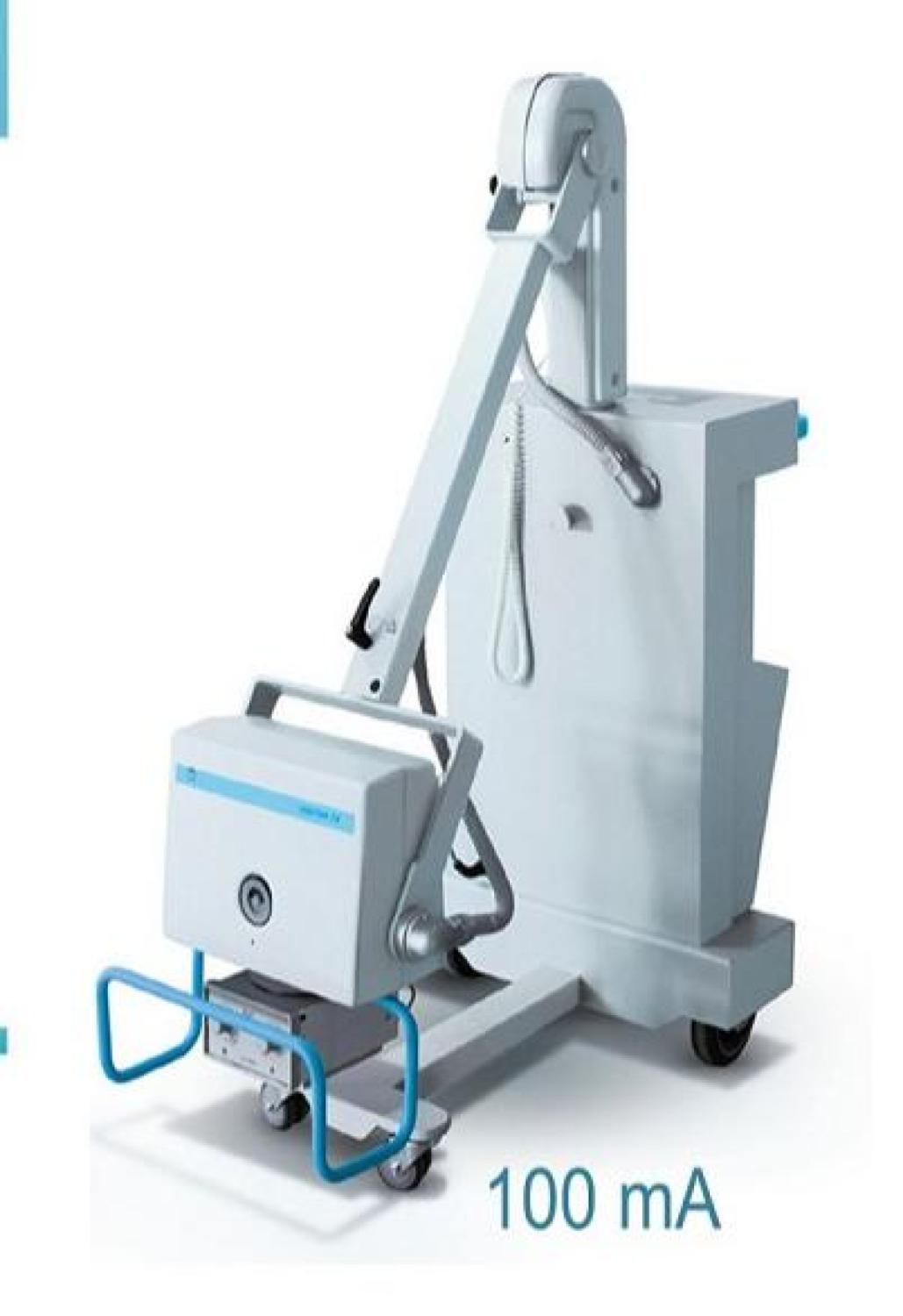

Mobile X-Ray 100mA
Type : VISITOR T4
Merk : VILLA S.M

Radiological characteristics
Generator power in DC current : 4kW @100kV (according to IEC601-1)
Inverter frequency : 22 kHz (High Voltage)
kV Range : 40 - 110 kVp in step of 1 kV
mA range : 20 - 100 mA (automatic)
mAs range : 0.2 - 250 mAs with 25% increments
Times range : 0.002 - 5 s

X-Ray Tube and Monoblock
X-ray tube type: OX/110-15 Stationary Anode
Focus nominal extension according to IEC 336 : 0.6mm small focus . 1.8mm large focus
Anode thermal capacity : 40kJ (55kHU)
Anode angle : 15°
Monoblock thermal capacity : 500kJ (665kHU)
Max. continues thermal dissipation of monoblock :55W
Total filtration : minimum 2.7 mm Al
Leakage radiation : <1mGy/h second IEC 601-1-3
H.V. transformer isolation : Oil bath

Mechanical characteristics
Weight : 143 kg
Max. width : 680 mm
Length in transport position : 1226 mm
Max. height in transport position : 1450 mm
Max. height with arm at the max. extension : 2245 mm
Control console height : 971 mm
Focus-floor distance : 433 - 204 mm
Monoblock rotation around its axis : 151° (+133° ÷ -118° towards the vertical axis)
Cassette storage : 4 cassettes 35 x 43cm format

Electrical characteristics
Voltage : 115 - 230 VAC ±10% single phase with automatic unit setting in function of the mains voltage
Frequency : 50/60Hz standard
Absorbed current : 20A @ 230Vac

* Harga sudah termasuk PPN
* Garansi 1 Tahun termasuk spare part
* After sales terjamin dengan ketersediaan suku cadang minimal selama 5 tahun
* Sudah termasuk ongkos kirim, sudah termasuk instalasi khusus alat (belum termasuk instalasi listrik, PB dan pemasangannya), sudah termasuk uji fungsi dan training kepada pengguna alat
* Sudah termasuk biaya 1x izin pemanfaatan dari BAPETEN
* Sudah termasuk biaya uji kesesuaian dari Badan UKAS
* Alat indent 2-3 bulan dari uang muka
