Ohio Medical LLC
1111 Lakeside Drive, Gurnee, IL 60031 USA
Phone: 1.866.549.6446
www.ohiomedical.com
®
Available Only ANALOG type.

Flow Rate: 0-80 LPM (Standard & High)
0-40 LPM (Pediatric)
Vacuum Range: 0 to Full Vacuum (Standard)
0-160 mmHg (Pediatric)
0-100 mmHg (Neonatal)
Gauge Range: 0-300 mmHg (Standard or Digital)
0-200 mmHg (Adult)
0-760 mmHg (High)
0-160 mmHg (Pediatric)
0-100 mmHg (Neonatal)
Gauge Accuracy: +/- 1% Full Scale (Digital)
+/- 3% Full Scale (Analog)
Dimensions: 5.8” x 3.0” x 4.0”
147mm x 76mm x 101mm
(H x W x D)
Weight: 0.750 lbs.
Vacuum Regulator Assembly
Continuous Vacuum Regulator Parts Identification
1 Face Assembly VR-FACE-ASMBY (3 Mode)
VR-FACE2-ASM (2 Mode)
2
&
3
Gauge and Lens
Analog:
VR-AG-760MM (760 mmHg)
VR-AG-300MM (300 mmHg)
VR-AG-200MM (200 mmHg)
VR-AG-160MM (160 mmHg)
VR-AG-100MM (100 mmHg)
VR-AG-760MM-CC (760 mmHg counter clockwise)
VR-AG-300MM-CC (300 mmHg counter clockwise)
VR-AG-160MM-CC (160 mmHg counter clockwise)
Digital:
VR-DG-760MM (760 mmHg)
VR-DG-300MM (300 mmHg)
VR-DG-200MM (200 mmHg)
VR-DG-160MM (160 mmHg)
VR-DG-100MM (100 mmHg)
4 Gauge O-ring (2 pcs) FI-ORN-012
5 Selector Screw VR-SCW-6-5/8P
6 Selector Face Plate
VR-SELFCE-2-GRY ( 2 Mode)
VR-SELFCE-GRY (3 Mode)
VR-SELFCE-2-BLU (2 Mode Pediatric)
VR-SELFCE-BLU (3 Mode Pediatric)
7 Selector Switch VR-SELBDY-GRY
VR-SELBDY-BLU
8 Selector O-Ring VR-SEL-ORING
9 Index Ball VR-SELBALL
10 Index Spring VR-SELSPRNG
11 Body Front VR-BODYF-GRY
VR-BODYF-BLU (Pediatric)
12 Back Gasket VR-BACK-GSKT
13 Back Plate VR-BDYBCK-GR-F
VR-BDYBCK-BL-F (Pediatric)
14 Cover Screws (4 pcs) VR-COVER-SCW
15 Back Plate Screws
(2 pcs) VR-SCW-6-5/8F
16 Bottom Plate Screw VR-BCKINS-SCW
17 Orifice VR-ORIFICE-129
18 Regulating Module
VR-MODULE (0-100mmHg, 0-160mmHg,
0-200mmHg, 0-300mmHg)
VR-MODULE-H (0-760mmHg)
19 Positive Pressure
Relief Valve VR-DBVALVE-FS
20 Port Cap (2 pcs) VR-PORT-CAP
21 Pediatric Relief Screw VR-PEDREL-SCW (Pediatric only)
22 Pediatric Relief Body VR-PEDREL-BDY (Pediatric only)
23 Pediatric Relief Ball VR-PEDREL-BAL (Pediatric only)
24 Relief O-ring FI-ORN-012

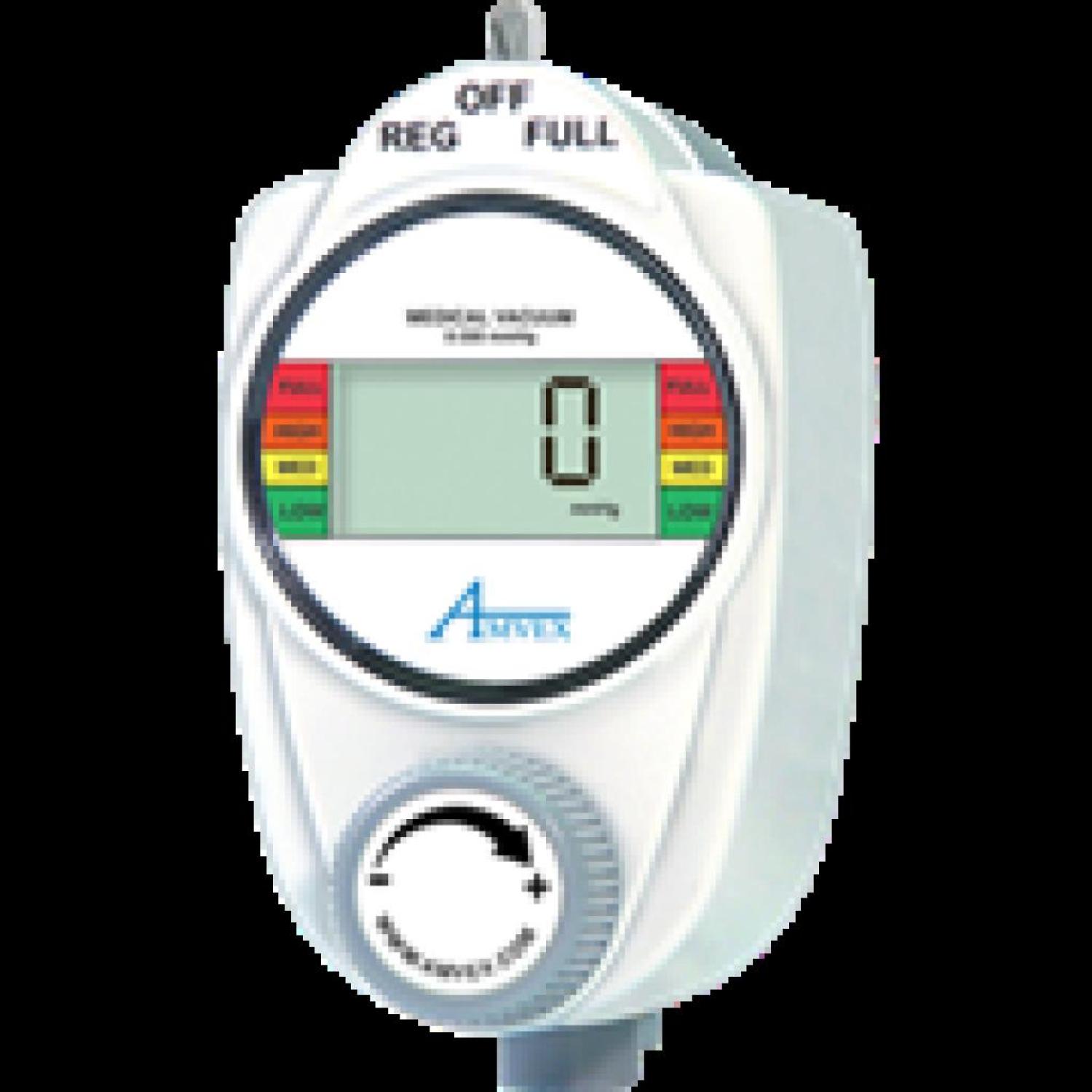

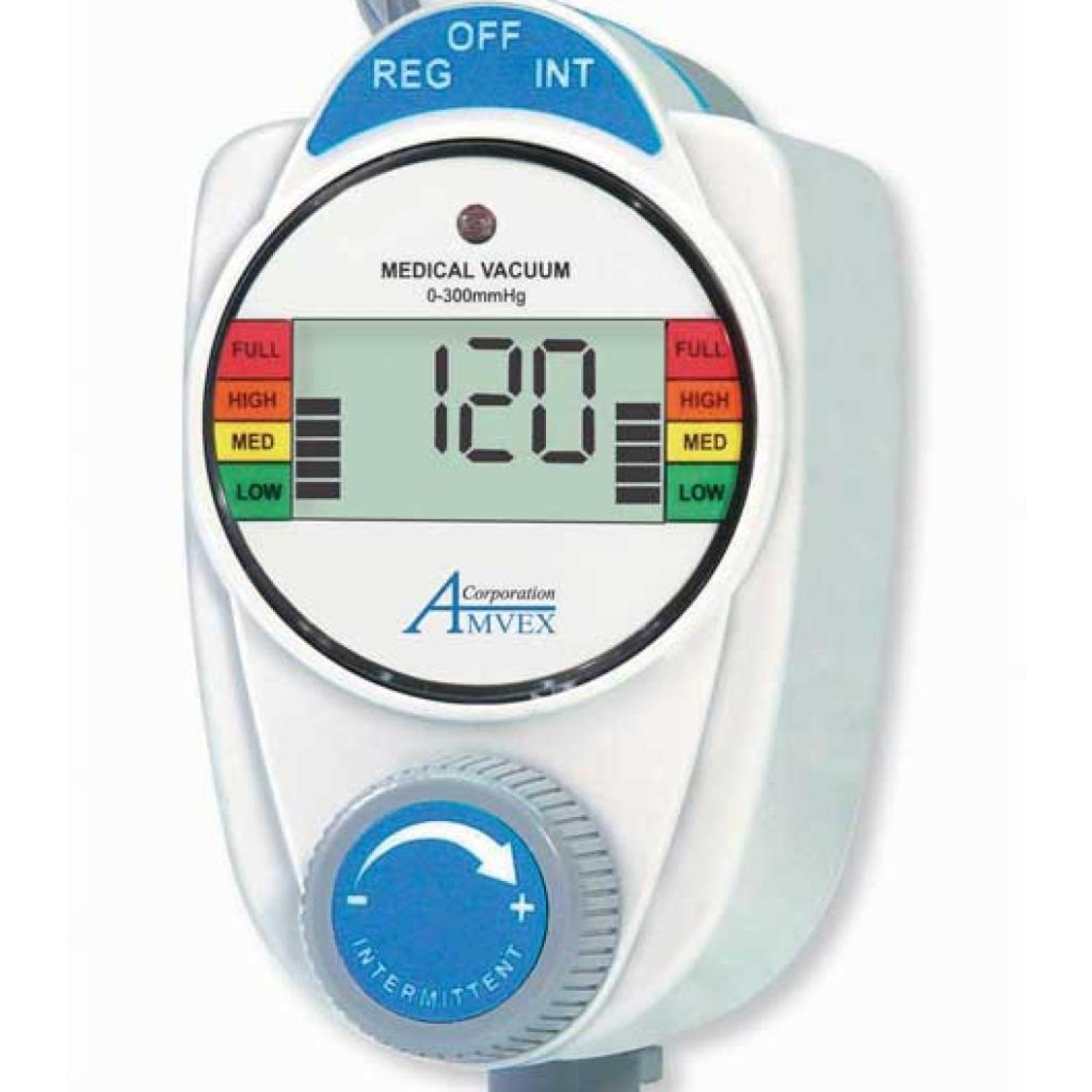

Amvex ® Continuous Vacuum Regulator
Technical Specifications
© 2017 Ohio Medical LLC. This document contains information that is proprietary and
confidential to Ohio Medical LLC. Use of this information is under license from Ohio
Medical LLC. Any use other than that authorized by Ohio Medical LLC is prohibited.
Ohio Medical LLC, the Ohio Medical logo, Amvex, the Amvex logo are registered trademarks of Ohio Medical LLC.
FOR ILLUSTRATION PURPOSES ONLY.
Not all parts listed are available for purchase.
Contact your sales representative for details
on available spare parts.
MK-CONTECHVR (Rev.1) 2017-11
